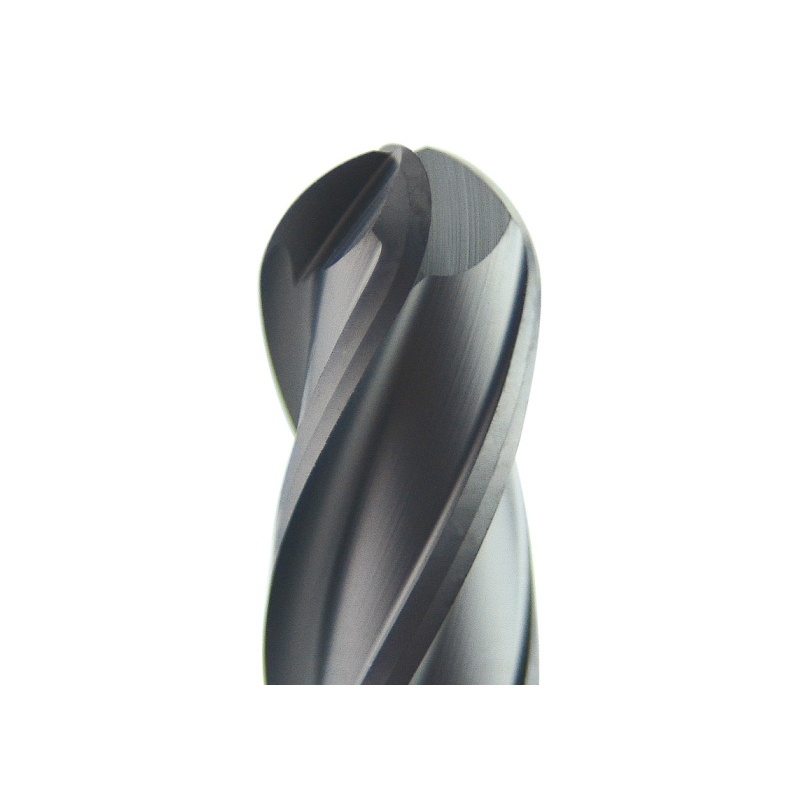

DMB, 4-flute

Back

Tolerance:

Dc < 3, 0 ~ -0.02mm

Dc ≥ 3, 0 ~ -0.025mm

Eff. Length Leff.: +0.05 ~ +0.15mm

Dc: h5

						unit: mm
Part No.	Cutting Dia. Dc	No. of Flutes	Flute Length Lf	Effective Length Leff	Shank Dia. Ds	Oveall Length L
DMB05-4-1-1-40	0.5	4	1	1	3	40
DMB05-4-1-4-40	0.5	4	1	4	3	40
DMB05-4-1-7-40	0.5	4	1	7	3	40
DMB05-4-1-10-40	0.5	4	1	10	3	40
DMB06-4-1-1-40	0.6	4	1	1	3	40
DMB06-4-1-5-40	0.6	4	1	5	3	40
DMB06-4-1-8-40	0.6	4	1	8	3	40
DMB06-4-1-12-40	0.6	4	1	12	3	40
DMB08-4-2-2-40	0.8	4	2	2	3	40
DMB08-4-2-7-40	0.8	4	2	7	3	40
DMB08-4-2-10-40	0.8	4	2	10	3	40
DMB08-4-2-15-40	0.8	4	2	15	3	40
DMB1-4-2-2-50	1	4	2	2	3	50
DMB1-4-2-6-50	1	4	2	6	3	50
DMB1-4-2-8-50	1	4	2	8	3	50	*
DMB1-4-2-10-50	1	4	2	10	3	50
DMB1-4-2-12-50	1	4	2	12	3	50	*
DMB1-4-2-14-50	1	4	2	14	3	50	*
DMB1-4-2-16-50	1	4	2	16	3	50
DMB1-4-2-20-50	1	4	2	20	3	50
DMB1-4-2-25-50	1	4	2	25	3	50	*
DMB1.5-4-3-6-50	1.5	4	3	6	3	50
DMB1.5-4-3-8-50	1.5	4	3	8	3	50	*
DMB1.5-4-3-10-50	1.5	4	3	10	3	50
DMB1.5-4-3-12-50	1.5	4	3	12	3	50	*
DMB1.5-4-3-14-50	1.5	4	3	14	3	50	*
DMB1.5-4-3-16-50	1.5	4	3	16	3	50
DMB1.5-4-3-20-50	1.5	4	3	20	3	50
DMB1.5-4-3-25-50	1.5	4	3	25	3	50	*
DMB2-4-6-6-50	2	4	6	6	3	50
DMB2-4-6-10-50	2	4	6	10	3	50
DMB2-4-6-12-50	2	4	6	12	3	50	*
DMB2-4-6-14-50	2	4	6	14	3	50	*
DMB2-4-6-16-50	2	4	6	16	3	50
DMB2-4-6-20-50	2	4	6	20	3	50
DMB2-4-6-25-50	2	4	6	25	3	50	*
DMB3-4-9-15-75	3	4	9	15	3	75
DMB4-4-15-20-75	4	4	15	20	4	75
DMB4-4-15-20-100	4	4	15	20	4	100
DMB6-4-20-25-60	6	4	20	25	6	60
DMB6-4-20-25-100	6	4	20	25	6	100
DMB6-4-20-25-150	6	4	20	25	6	150
DMB8-4-25-35-100	8	4	25	35	8	100
DMB8-4-25-35-150	8	4	25	35	8	150
DMB10-4-25-35-100	10	4	25	35	10	100
DMB10-4-25-35-150	10	4	25	35	10	150
DMB12-4-25-35-100	12	4	25	35	12	100
DMB12-4-25-35-150	12	4	25	35	12	150
*: modified from shorter effective length
